意大利Guarniflon(GF)進口孔用旋轉格萊圈GCS/R用于對帶有旋轉或搖擺運動的桿、軸、主軸、孔、旋轉傳動輸入端、軸頸和旋轉接頭等進行密封。密封件是雙作用的，能夠以單側或雙側暴露在壓力下。通過一個作為彈性施力元件的O形圈來起作用，用來裝O形圈的背面帶有內凹形狀，這樣加大了接觸表面，從而防止密封件隨著旋轉表面一起轉動。

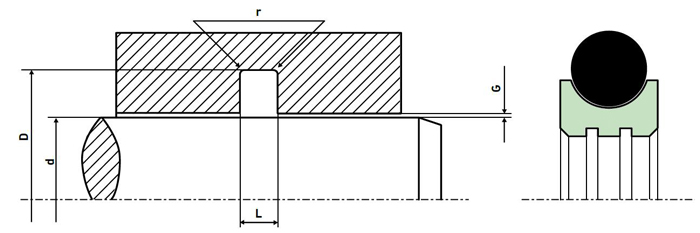

| 系列號 | d h9 | D H9 | L+0.2 | r | G | O-Ring | |
| 0-200Bar | 200-300Bar | ||||||
| GCS/R-0 | 6-18.9 | d-4.9 | 2.2 | 0.3 | 0.3-0.2 | 0.15-0.1 | 1.78 |
| GCS/R-1 | 19-37.9 | d-7.5 | 3.2 | 0.5 | 0.6-0.4 | 0.3-0.2 | 2.62 |
| GCS/R-2 | 38-199.9 | d-11.0 | 4.2 | 0.7 | 0.6-0.4 | 0.3-0.2 | 3.53 |
| GCS/R-3 | 200-255.9 | d-15.5 | 6.3 | 1 | 0.8-0.6 | 0.4-0.3 | 5.34 |
| GCS/R-4 | 256-649.9 | d-21.0 | 8.1 | 1.2 | 0.8-0.6 | 0.4-0.3 | 6.99 |
| GCS/R-5 | 650-999.9 | d-28.0 | 9.5 | 1.5 | 1.2-0.9 | 0.6-0.5 | 8.4 |
| 訂貨號 | d h9*D H9*L+0.2 | O型圈規格 | 訂貨號 | d h9*D H9*L+0.2 | O型圈規格 | |
| GCS/R 6×2.2 T46N | 6*10.9*2.2 | 7.65*1.78 | GCS/R 95×4.2 T46N | 95*106*4.2 | 101.19*3.53 | |
| GCS/R 8×2.2 T46N | 8*12.9*2.2 | 9.5*1.8 | GCS/R 100×4.2 T46N | 100*111*4.2 | 104.37*3.53 | |
| GCS/R 10×2.2 T46N | 10*14.9*2.2 | 11.8*1.8 | GCS/R 105×4.2 T46N | 105*116*4.2 | 110.72*3.53 | |
| GCS/R 12×2.2 T46N | 12*16.9*2.2 | 14*1.78 | GCS/R 110×4.2 T46N | 110*121*4.2 | 113.89*3.53 | |
| GCS/R 14×2.2 T46N | 14*18.9*2.2 | 15.6*1.78 | GCS/R 115×4.2 T46N | 115*126*4.2 | 120.24*3.53 | |
| GCS/R 15×2.2 T46N | 15*19.9*2.2 | 17.17*1.78 | GCS/R 120×4.2 T46N | 120*131*4.2 | 123.42*3.53 | |
| GCS/R 16×2.2 T46N | 16*20.9*2.2 | 17.17*1.78 | GCS/R 125×4.2 T46N | 125*136*4.2 | 129.77*3.53 | |
| GCS/R 18×2.2 T46N | 18*22.9*2.2 | 18.77*1.78 | GCS/R 130×4.2 T46N | 130*141*4.2 | 136.12*3.53 | |
| GCS/R 20×3.2 T46N | 20*27.5*3.2 | 21.89*2.62 | GCS/R 135×4.2 T46N | 135*146*4.2 | 139.29*3.53 | |
| GCS/R 22×3.2 T46N | 22*29.5*3.2 | 25.07*2.62 | GCS/R 140×4.2 T46N | 140*151*4.2 | 145.64*3.53 | |
| GCS/R 25×3.2 T46N | 25*32.5*3.2 | 28.24*2.62 | GCS/R 150×4.2 T46N | 150*161*4.2 | 151.99*3.53 | |
| GCS/R 28×3.2 T46N | 28*35.5*3.2 | 31.42*2.62 | GCS/R 160×4.2 T46N | 160*171*4.2 | 164.69*3.53 | |
| GCS/R 30×3.2 T46N | 30*37.5*3.2 | 32.99*2.62 | GCS/R 170×4.2 T46N | 170*181*4.2 | 177.39*3.53 | |
| GCS/R 32×3.2 T46N | 32*39.5*3.2 | 34.59*2.62 | GCS/R 180×4.2 T46N | 180*191*4.2 | 183.74*3.53 | |
| GCS/R 35×3.2 T46N | 35*42.5*3.2 | 37.77*2.62 | GCS/R 190×4.2 T46N | 190*201*4.2 | 196.44*3.53 | |
| GCS/R 36×3.2 T46N | 36*43.5*3.2 | 39.34*2.62 | GCS/R 200×6.3 T46N | 200*215.5*6.3 | 208.92*5.33 | |
| GCS/R 40×4.2 T46N | 40*51*4.2 | 44.04*3.53 | GCS/R 210×6.3 T46N | 210*225.5*6.3 | 215.27*5.33 | |
| GCS/R 42×4.2 T46N | 42*53*4.2 | 47.22*3.53 | GCS/R 220×6.3 T46N | 220*235.5*6.3 | 227.97*5.33 | |
| GCS/R 45×4.2 T46N | 45*56*4.2 | 50.39*3.53 | GCS/R 240×6.3 T46N | 240*255.5*6.3 | 247.02*5.33 | |
| GCS/R 48×4.2 T46N | 48*59*4.2 | 53.57*3.53 | GCS/R 250×6.3 T46N | 250*265.5*6.3 | 253.37*5.33 | |
| GCS/R 50×4.2 T46N | 50*61*4.2 | 53.57*3.53 | GCS/R 280×8.1 T46N | 280*301*8.1 | 291.47*7 | |
| GCS/R 52×4.2 T46N | 52*63*4.2 | 56.74*3.53 | GCS/R 300×8.1 T46N | 300*321*8.1 | 304.17*7 | |
| GCS/R 55×4.2 T46N | 55*66*4.2 | 59.92*3.53 | GCS/R 320×8.1 T46N | 320*341*8.1 | 329.57*7 | |
| GCS/R 56×4.2 T46N | 56*67*4.2 | 59.92*3.53 | GCS/R 350×8.1 T46N | 350*371*8.1 | 354.97*7 | |
| GCS/R 60×4.2 T46N | 60*71*4.2 | 63.09*3.53 | GCS/R 360×8.1 T46N | 360*381*8.1 | 367.67*7 | |
| GCS/R 63×4.2 T46N | 63*74*4.2 | 66.27*3.53 | GCS/R 400×8.1 T46N | 400*421*8.1 | 405.26*7 | |
| GCS/R 65×4.2 T46N | 65*76*4.2 | 69.44*3.53 | GCS/R 420×8.1 T46N | 420*441*8.1 | 430.66*7 | |
| GCS/R 70×4.2 T46N | 70*81*4.2 | 75.79*3.53 | GCS/R 450×8.1 T46N | 450*471*8.1 | 456.06*7 | |
| GCS/R 75×4.2 T46N | 75*86*4.2 | 78.97*3.53 | GCS/R 480×8.1 T46N | 480*501*8.1 | 494.16*7 | |
| GCS/R 80×4.2 T46N | 80*91*4.2 | 85.32*3.53 | GCS/R 500×8.1 T46N | 500*521*8.1 | 506.86*7 | |
| GCS/R 85×4.2 T46N | 85*96*4.2 | 88.49*3.53 | GCS/R 600×8.1 T46N | 600*621*8.1 | 608.08*7 | |
| GCS/R 90×4.2 T46N | 90*101*4.2 | 94.84*3.53 | GCS/R 700×9.5 T46N | 700*728*9.5 | 713*8.4 |
