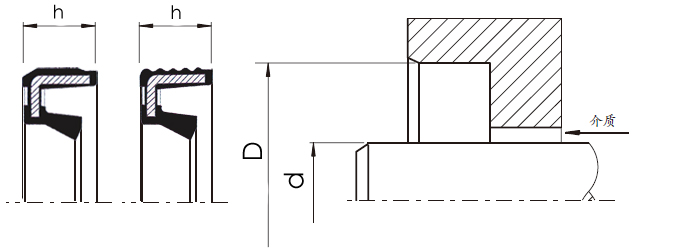

VC,VCW,VG無彈簧骨架油封結構由兩部分組成:油封體和加強骨架。該油封適用于潤滑脂及有粉塵的場合，有壓力的場合不建議使用。
| 型號 | d*D*h | 型號 | d*D*h | 型號 | d*D*h | ||
| VC | 4.78*12.7*3.18 | VC | 16*24*3 | VC | 28*40*4 | ||
| VC | 6*10*3 | VC | 16*25*3 | VC | 28*40*5 | ||
| VC | 8*12*3 | VC | 17*23*3 | VC | 30*37*4 | ||
| VC | 8*14*4 | VC | 18*24*3 | VC | 30*40*4 | ||
| VC | 8*16*3 | VC | 18*24*4 | VC | 30*42*4 | ||
| VC | 9*16*3 | VC | 18*26*4 | VC | 30.18*42.06*6.35 | ||
| VC | 9*28*4.1 | VC | 19*25*3.2 | VC | 32*42*4 | ||
| VC | 10*14*3 | VC | 19*27*4 | VC | 35*42*4 | ||
| VC | 10*17*3 | VC | 20*26*4 | VC | 37*47*4 | ||
| VC | 12*16*3 | VC | 20*28*4 | VC | 39*52*5 | ||
| VC | 12*18*3 | VC | 20*30*4 | VC | 40*47*4 | ||
| VC | 12*19*3 | VC | 22*28*4 | VC | 40*50*4 | ||
| VC | 12*23*3 | VC | 24*31*4 | VC | 43*53*4 | ||
| VC | 14*20*3 | VC | 24*32*4 | VC | 45*55*4 | ||
| VC | 14*22*3 | VC | 25*32*4 | VC | 50*58*4 | ||
| VC | 15*21*3 | VC | 25*33*4 | VC | 50*60.5*5 | ||
| VC | 15*28*3 | VC | 25*35*4 | VC | 50*62*5 | ||
| VC | 15.88*22.23*3.96 | VC | 26*32*4 | VC | 55*63*5 | ||
| VC | 16*22*3 | VC | 28*35*4 | VC | 60*72*4 |
