NOK油封UPI是液壓缸中常用的密封圈,它是一種典型的雙唇口密封件,無論用于活塞還是活塞桿都能獲得良好的密封效果。主要應用于重載行走機械或工業液壓中的活塞或活塞桿密封。日本NOK油封的型號有:SPNO型,USI型,UPH型,USH型,SPG型,SPGO型,SPGC型,CPI型,SPN型,SPNS型,SPNC型,UPI型,V99F型,V96H型,ISI型,IUIS型,IUH型,UNI型,SPGW型,UHR型,ODI型,OSI型,OUIS型,OUHR型,CPH型,IDI型,DKI型,DWI型,DWIR型,DKBI型,DKB型,DKH型,DSI型,LBI型,LBH型,DSPB型,LBHK型,緩沖環HBY型,HBTS型,抗磨環RYT型,WR型 KZT型,支承環BRT2型,BRT3型,BRN2型,BRN3型。

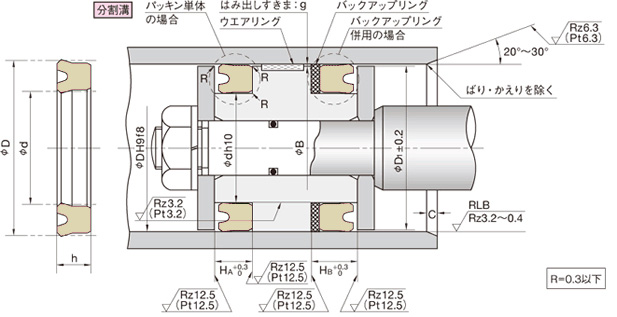

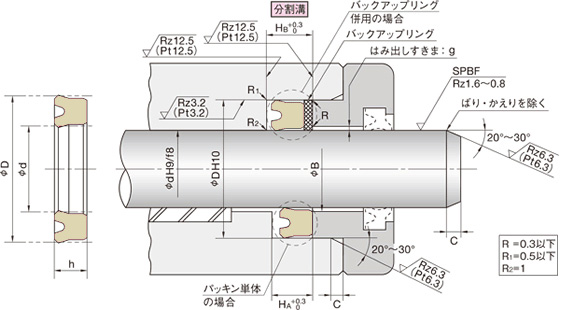

NOK零件號 | 密封件公稱尺寸及安裝部分尺寸 | NOK零件號 | 密封件公稱尺寸及安裝部分尺寸 | |||||||||
d*D*h | HA | HB | φD1 | C | d*D*h | HA | HB | φD1 | C | |||
FU0024D0 | 6.3*16.3*8 | 9 | 11 | 15.3 | 2.5 | FU1365D0 | 150*175*15 | 17 | 20 | 173 | 6.5 | |
FU0030D0 | 7.1*17.1*8 | 9 | 11 | 16.1 | 2.5 | FU1391D0 | 155*180*15 | 17 | 21 | 178 | 6.5 | |
FU0043D0 | 8*18*8 | 9 | 11 | 17 | 2.5 | FU1413D0 | 160*185*15 | 17 | 21 | 183 | 6.5 | |
FU0054D0 | 9*19*8 | 9 | 11 | 18 | 2.5 | FU1431D0 | 165*190*15 | 17 | 21 | 188 | 6.5 | |
FU0069D0 | 10*20*8 | 9 | 11 | 19 | 2.5 | FU1448D0 | 170*195*15 | 17 | 21 | 193 | 6.5 | |
FU0081D0 | 11.2*21.2*8 | 9 | 11 | 20.2 | 2.5 | FU1461D0 | 175*200*15 | 17 | 21 | 198 | 6.5 | |
FU0093D0 | 12*25*8 | 9 | 11 | 24 | 2.5 | FU1490D0 | 180*205*15 | 17 | 21 | 203 | 6.5 | |
FU0102D0 | 12.5*22.5*8 | 9 | 11 | 21.5 | 2.5 | FU1504D0 | 185*210*15 | 17 | 21 | 208 | 6.5 | |
FU0122D0 | 14*24*8 | 9 | 11 | 23 | 2.5 | FU1519D0 | 190*215*15 | 17 | 21 | 213 | 6.5 | |
FU0135D0 | 15*25*8 | 9 | 11 | 24 | 2.5 | FU1532D0 | 199*224*15 | 17 | 21 | 222 | 6.5 | |
FU0157D0 | 16*26*8 | 9 | 11 | 25 | 2.5 | FU1547D0 | 200*225*15 | 17 | 21 | 223 | 6.5 | |
FU0161D0 | 16*32*10 | 11 | 13 | 31 | 2.5 | FU1549D0 | 200*225*18 | 20 | 24 | 223 | 6.5 | |
FU0182D0 | 18*28*8 | 9 | 11 | 27 | 3.5 | FU1565D0 | 205*235*18 | 20 | 24 | 233 | 6.5 | |
FU0186D0 | 18*31*11 | 13 | 10 | 30 | 3.5 | FU1579D0 | 210*235*18 | 20 | 24 | 233 | 6.5 | |
FU0215D0 | 20*30*8 | 9 | 11 | 29 | 3.5 | FU1584D0 | 212*237*18 | 20 | 24 | 235 | 6.5 | |
FU0221D0 | 20*33*10 | 11 | 13 | 32 | 3.5 | FU1599D0 | 220*245*18 | 20 | 24 | 243 | 6.5 | |
FU0224D0 | 20*35*10 | 11 | 13 | 34 | 3.5 | FU1612D0 | 224*249*18 | 20 | 24 | 247 | 6.5 | |
FU0239D0 | 21.5*31.5*8 | 9 | 11 | 30.5 | 3.5 | FU1625D0 | 225*250*18 | 20 | 24 | 248 | 6.5 | |
FU0246D0 | 22*32*8 | 9 | 11 | 31 | 3.5 | FU1639D0 | 230*254*18 | 20 | 24 | 252 | 6.5 | |
FU0249D0 | 22*35*10 | 11 | 13 | 34 | 3.5 | FU1641D0 | 230*255*18 | 20 | 24 | 253 | 6.5 | |
FU0260D0 | 22.4*30*5 | 5.7 | 7.7 | 29 | 3.5 | FU1648D0 | 236*261*18 | 20 | 24 | 259 | 6.5 | |
FU0263D0 | 22.4*32.4*8 | 9 | 11 | 31.4 | 3.5 | FU1662D0 | 240*265*18 | 20 | 24 | 263 | 6.5 | |
FU0282D0 | 25*35*8 | 9 | 11 | 34 | 3.5 | FU1682D0 | 250*275*18 | 20 | 24 | 273 | 6.5 | |
FU0287D0 | 25*38*8 | 9 | 11 | 37 | 3.5 | FU1706D0 | 260*290*18 | 20 | 24 | 288 | 8 | |
FU0292D0 | 25*40*10 | 11 | 13 | 39 | 3.5 | FU1713D0 | 265*295*18 | 20 | 24 | 293 | 8 | |
FU0301D0 | 25*45*12 | 13 | 15 | 39 | 3.5 | FU1722D0 | 270*300*18 | 20 | 24 | 298 | 8 | |
FU0309D1 | 25.5*35.5*8 | 9 | 11 | 34.5 | 3.5 | FU1735D0 | 280*310*18 | 20 | 24 | 308 | 8 | |
FU0320D1 | 28*35.5*5 | 5.7 | 8.7 | 34.5 | 3.5 | FU1750D0 | 290*320*18 | 20 | 24 | 318 | 8 | |
FU0330D0 | 28*40*10 | 11 | 14 | 39 | 3.5 | FU1764D0 | 300*330*18 | 20 | 24 | 328 | 8 | |
FU0340D0 | 28*43*10 | 11 | 14 | 42 | 3.5 | FU1773D0 | 310*340*22 | 24 | 28 | 338 | 10 | |
FU0368D0 | 30*45*10 | 11 | 14 | 44 | 3.5 | FU1775D0 | 315*345*22 | 24 | 28 | 343 | 10 | |
FU0369D0 | 30*46*10 | 11 | 14 | 45 | 3.5 | FU1778D0 | 320*350*15 | 17 | 21 | 348 | 10 | |
FU0387D0 | 31.5*46.5*10 | 11 | 14 | 45.5 | 3.5 | FU1779D0 | 320*350*18 | 20 | 24 | 348 | 10 | |
FU0403D0 | 32*46*10 | 11 | 14 | 45 | 4 | FU1780D0 | 320*350*22 | 24 | 28 | 348 | 10 | |
FU0437D0 | 35*50*10 | 11 | 14 | 49 | 4 | FU1781D0 | 320*360*25 | 27 | 31 | 358 | 10 | |
FU0451D0 | 35.5*45*6 | 7 | 10 | 44 | 4 | FU1784D0 | 323*355*24 | 26 | 30 | 353 | 10 | |
FU0456D0 | 35.5*50.5*10 | 11 | 14 | 49.5 | 4 | FU1788D0 | 330*360*20 | 22 | 26 | 358 | 10 | |
FU0470D0 | 38*52*10 | 11 | 14 | 51 | 4 | FU1789D0 | 330*360*22 | 24 | 28 | 358 | 10 | |
FU0505D0 | 40*55*10 | 11 | 14 | 54 | 4 | FU1791D0 | 330*370*28 | 30 | 34 | 368 | 10 | |
FU0508D0 | 40*56*10 | 11 | 14 | 55 | 4 | FU1795D0 | 340*370*22 | 24 | 28 | 368 | 10 | |
FU0514D0 | 40*60*12 | 13 | 16 | 59 | 4 | FU1799D0 | 350*380*22 | 24 | 28 | 378 | 10 | |
FU0523D0 | 41*56*10 | 11 | 14 | 55 | 4 | FU2016D0 | 350*390*28 | 30 | 34 | 388 | 10 | |
FU0572D1 | 45*56*7 | 8 | 11 | 55 | 4 | FU1801D0 | 355*385*22 | 24 | 28 | 383 | 10 | |
FU0577D0 | 45*60*10 | 11 | 14 | 59 | 4 | FU1809D0 | 370*400*22 | 24 | 28 | 398 | 10 | |
FU0579D0 | 45*61*10 | 11 | 14 | 60 | 4 | FU1812D0 | 375*405*22 | 24 | 28 | 403 | 10 | |
FU0588D0 | 46*60*10 | 11 | 14 | 59 | 4 | FU1816D0 | 380*410*22 | 24 | 28 | 408 | 10 | |
FU0601D0 | 48*63*10 | 11 | 14 | 62 | 4 | FU1993D0 | 385*415*22 | 24 | 28 | 413 | 10 | |
FU0631D0 | 50*65*10 | 11 | 14 | 64 | 4 | FU1818D0 | 390*420*22 | 24 | 28 | 418 | 10 | |
FU0635D0 | 50*66*12 | 13 | 16 | 65 | 4 | FU1822D0 | 400*425*22 | 24 | 28 | 423 | 10 | |
FU0639D0 | 50*70*12 | 13 | 16 | 69 | 4 | FU1823D0 | 400*430*22 | 24 | 28 | 428 | 10 | |
FU0669D0 | 51*71*12 | 13 | 16 | 70 | 4 | FU1827D0 | 405*440*25 | 27 | 32 | 438 | 15 | |
FU0683D0 | 53*73*12 | 13 | 16 | 72 | 4 | FU1829D0 | 410*445*25 | 27 | 32 | 443 | 15 | |
FU0704D0 | 55*71*12 | 13 | 16 | 70 | 4 | FU1830D0 | 410*460*35 | 37 | 42 | 458 | 15 | |
FU0708D0 | 55*75*12 | 13 | 16 | 74 | 4 | FU1831D0 | 415*450*25 | 27 | 32 | 448 | 15 | |
FU0712D0 | 55*80*15 | 16 | 19 | 79 | 4 | FU1833D0 | 420*455*25 | 27 | 32 | 453 | 15 | |
FU0727D0 | 56*72*12 | 13 | 16 | 71 | 4 | FU2223D0 | 425*460*25 | 27 | 32 | 458 | 15 | |
FU0728D0 | 56*76*12 | 13 | 16 | 75 | 4 | FU1977D0 | 430*460*22 | 24 | 29 | 458 | 15 | |
FU0736D0 | 58*78*12 | 13 | 16 | 77 | 4 | FU2013D0 | 430*465*25 | 27 | 32 | 463 | 15 | |
FU0750D0 | 60*71*7 | 8 | 11 | 70 | 4 | FU1839D1 | 431*457.2*18 | 20 | 25 | 455 | 15 | |
FU0761D0 | 60*80*12 | 13 | 16 | 79 | 4 | FU1841D0 | 435*470*25 | 27 | 32 | 468 | 15 | |
FU0777D0 | 62*82*12 | 13 | 16 | 81 | 4 | FU1842D0 | 440*470*19 | 21 | 26 | 468 | 15 | |
FU0793D0 | 63*83*12 | 13 | 16 | 82 | 4 | FU1976D0 | 440*475*28 | 30 | 35 | 473 | 15 | |
FU0819D0 | 65*85*12 | 13 | 16 | 84 | 5 | FU2428D0 | 445*480*25 | 27 | 32 | 478 | 15 | |
FU0831D0 | 67*87*12 | 13 | 16 | 86 | 5 | FU1845D0 | 450*485*25 | 27 | 32 | 483 | 15 | |
FU0862D0 | 70*90*12 | 13 | 16 | 89 | 5 | FU1847D1 | 456*490*30 | 32 | 37 | 488 | 15 | |
FU0879D1 | 71*80*6 | 7 | 10 | 79 | 5 | FU1849D0 | 460*495*25 | 27 | 32 | 493 | 15 | |
FU0884D0 | 71*91*12 | 13 | 16 | 90 | 5 | FU2648D0 | 465*500*26.5 | 28.5 | 33.5 | 498 | 15 | |
FU0910D0 | 75*95*12 | 13 | 16 | 94 | 5 | FU1851D0 | 470*505*25 | 27 | 32 | 503 | 15 | |
FU0948D0 | 80*100*12 | 13 | 16 | 98 | 5 | FU1854D0 | 475*510*25 | 27 | 32 | 508 | 15 | |
FU0949D0 | 80*100*15 | 16 | 19 | 98 | 5 | FU2025D0 | 480*515*25 | 27 | 32 | 513 | 15 | |
FU0984D1 | 85*100*9 | 10 | 13 | 98 | 5 | FU1855D0 | 490*530*25 | 27 | 32 | 528 | 15 | |
FU0989D0 | 85*105*12 | 13 | 16 | 103 | 5 | FU1856D0 | 500*535*25 | 27 | 32 | 533 | 20 | |
FU1030D0 | 90*110*12 | 13 | 16 | 108 | 5 | FU1857D0 | 500*540*25 | 27 | 32 | 538 | 20 | |
FU1042D0 | 92*112*12 | 13 | 16 | 110 | 5 | FU1858D0 | 507*547*28 | 30 | 35 | 545 | 20 | |
FU1056D0 | 95*115*12 | 13 | 16 | 113 | 5 | FU2743D0 | 525*565*28 | 30 | 35 | 563 | 20 | |
FU1061D0 | 95*120*15 | 16 | 19 | 118 | 5 | FU2718D0 | 530*570*25 | 27 | 32 | 568 | 20 | |
FU1068D0 | 98*112*9 | 10 | 13 | 110 | 5 | FU2376D0 | 540*575*23 | 25 | 30 | 573 | 20 | |
FU1089D0 | 100*120*12 | 13 | 16 | 118 | 5 | FU1865D0 | 560*600*28 | 30 | 35 | 598 | 20 | |
FU1096D0 | 100*125*15 | 17 | 20 | 123 | 5 | FU1986D0 | 595*640*28 | 30 | 35 | 638 | 20 | |
FU1129D0 | 105*125*15 | 17 | 20 | 123 | 5 | FU2017D0 | 600*650*32 | 34 | 39 | 648 | 20 | |
FU1135D1 | 106*120*8.5 | 9.5 | 12.5 | 118 | 5 | FU2003D0 | 650*690*25 | 27 | 32 | 688 | 20 | |
FU1138D0 | 106*126*15 | 17 | 20 | 124 | 5 | FU1870D0 | 660*700*32 | 34 | 39 | 698 | 20 | |
FU1165D0 | 110*130*15 | 17 | 20 | 128 | 5 | FU1871D0 | 680*720*32 | 34 | 39 | 718 | 20 | |
FU1182D0 | 112*132*15 | 17 | 20 | 130 | 5 | FU2398D0 | 695*745*32 | 34 | 39 | 743 | 20 | |
FU1198D0 | 115*135*15 | 17 | 20 | 133 | 5 | FU1874D0 | 700*750*35 | 37 | 42 | 748 | 20 | |
FU1932D0 | 118*132*9 | 10 | 13 | 130 | 5 | FU2078D0 | 730*750*30 | 32 | 37 | 748 | 20 | |
FU1207D0 | 118*138*15 | 17 | 20 | 136 | 5 | FU1876D0 | 755*800*32 | 34 | 39 | 798 | 20 | |
FU1224D0 | 120*140*15 | 17 | 20 | 138 | 5 | FU1978D0 | 800*830*20 | 22 | 27 | 828 | 20 | |
FU1257D0 | 125*145*15 | 17 | 20 | 143 | 5 | FU1881D0 | 800*850*35 | 37 | 42 | 848 | 20 | |
FU1284D0 | 130*150*15 | 17 | 20 | 148 | 6.5 | FU2219D0 | 850*900*35 | 37 | 42 | 898 | 20 | |
FU1292D0 | 132*152*15 | 17 | 20 | 150 | 6.5 | FU1979D0 | 870*900*20 | 22 | 27 | 898 | 20 | |
FU1305D0 | 135*155*15 | 17 | 20 | 153 | 6.5 | FU1888D1 | 920*970*35 | 37 | 42 | 968 | 20 | |
FU1933D0 | 136*150*9 | 10 | 13 | 148 | 6.5 | FU2391D0 | 1050*1100*30 | 32 | 37 | 1098 | 20 | |
FU1327D0 | 140*160*15 | 17 | 20 | 158 | 6.5 | FU2558D0 | 1096*1146*30 | 32 | 37 | 1144 | 20 | |
FU1330D0 | 140*165*15 | 17 | 20 | 163 | 6.5 | FU2229D0 | 1150*1200*30 | 32 | 37 | 1198 | 20 | |
FU1344D0 | 145*165*15 | 17 | 20 | 163 | 6.5 | FU2392D0 | 1380*1430*30 | 32 | 37 | 1428 | 20 | |
FU1363D0 | 150*170*15 | 17 | 20 | 168 | 6.5 |
