KASTAS組合油封K46是一種四件式雙作用緊湊型密封件，由聚氨酯密封圈和NBR增能器O形圈組成，兩個特殊的型材導向環由熱塑性塑料制成，可吸收橫向力。K46具有卓越的密封性能，由于設計緊湊，無需額外的導向環，經濟的密封和導向解決方案，簡單的凹槽設計，可實現一體式活塞，由于橫截面厚度低，降低了活塞加工成本等特點，常應用于農業機械和工業應用。由于支撐環和導向環以分體式生產，因此可輕松組裝成一體式活塞。組裝工具必須是柔軟的材料并且沒有鋒利的邊緣是非常重要的。在安裝之前，密封元件必須用系統油涂上油。

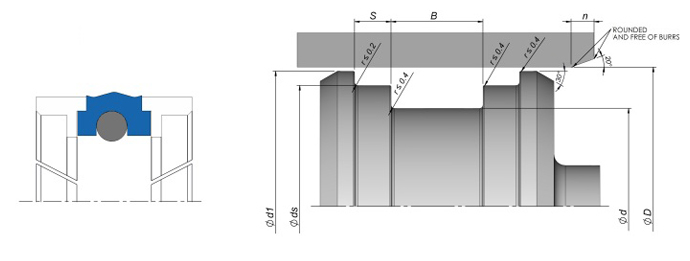

| 訂貨號 | D(H10) | d(h9) | B(-0.0/+0.2) | ds(h8) | d1(-0.1/+0.1) | S(-0.0/+0.2) | n |
| K46 038.10-028.57 | 38.1 | 28.575 | 11.2 | 33.68 | 37.36 | 3.54 | 5 |
| K46 050.80-041.27 | 50.8 | 41.275 | 11.1 | 46.25 | 49.4 | 3.86 | 5 |
| K46 063.50-053.97 | 63.5 | 53.97 | 11.2 | 58.93 | 62.1 | 3.86 | 5 |
| K46 076.20-066.66 | 76.2 | 66.66 | 11.2 | 71.625 | 74.8 | 3.86 | 5 |
| K46 088.90-076.15 | 88.9 | 76.15 | 14.47 | 82.93 | 87.5 | 5.43 | 5 |
| K46 101.60-088.9 | 101.6 | 88.9 | 14.47 | 95.63 | 99.9 | 5.43 | 7 |
| K46-100-87 | 100 | 87 | 14 | 93.8 | 98.5 | 6 | 5 |
| K46-100-90 | 100 | 90 | 12.5 | 96 | 98.5 | 5 | 4.5 |
| K46-25-17 | 25 | 17 | 10 | 22 | 24 | 4 | 4 |
| K46-32-24 | 32 | 24 | 10 | 29 | 31 | 4 | 4 |
| K46-40-30 | 40 | 30 | 11 | 35.5 | 39 | 4 | 4 |
| K46-40-30/1 | 40 | 30 | 10 | 36.5 | 39 | 5 | 4 |
| K46-50-40 | 50 | 40 | 11 | 45.5 | 49 | 4 | 4 |
| K46-63-53 | 63 | 53 | 11 | 58.5 | 61.5 | 4 | 4 |
| K46-70-60 | 70 | 60 | 12.5 | 67 | 69 | 4 | 4.5 |
| K46-80-70 | 80 | 70 | 11 | 75.5 | 78.5 | 4 | 4.5 |
| K46-80-70/1 | 80 | 70 | 12.5 | 77 | 79 | 4 | 4.5 |
| K46-90-80 | 90 | 80 | 12.5 | 86 | 88.5 | 5 | 4.5 |
