GF進口軸用格萊圈GCS型

意大利Guarniflon(GF)軸用格萊圈GCS用在高壓和低壓系統中。雙作用的格來圈由填充聚四氟乙烯材料制成的密封環和施力的O形圈組成。它是通過徑向的過盈配合，連同O形圈的壓縮，來保證即使在低壓下也具有良好密封效果。當系統壓力升高時，O形圈通過流體施加更大的力，使四氟密封環緊貼密封面。

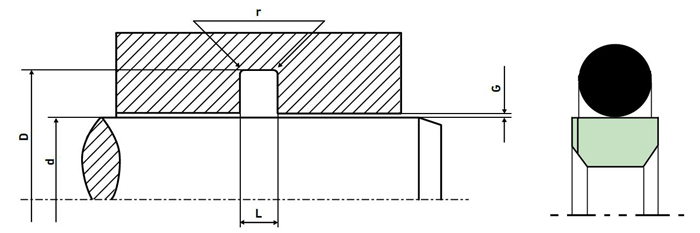

意大利Guarniflon(GF)進口斯特封GCR型安裝圖

意大利Guarniflon(GF)進口軸用格萊圈GCS溝槽安裝尺寸
d h9 D H9　 L+0.2　 G r　 O-Ring　
GCS-L GCS GCS-P 0-200Bar 200-400Bar
8-18.9 3-7.9 　 d+4.9 2.2 0.4-0.3 0.3-0.2 0.4 1.78
19-37.9 8-18.9 　 d+7.3 3.2 0.5-0.3 0.3-0.2 0.6 2.62
38-199.9 19-37.9 8-18.9 d+10.7 4.2 0.7-0.4 0.4-0.2 1 3.53
200-255.9 38-199.9 19-37.9 d+15.1 6.3 0.8-0.6 0.6-0.4 1.3 5.34
256-649.9 200-255.9 38-199.9 d+20.5 8.1 0.8-0.6 0.6-0.4 1.8 6.99
650-999.9 256-649.9 200-255.9 d+24.0 8.1 0.9-0.7 0.7-0.4 1.8 6.99
　 650-999.9 256-649.9 d+27.3 9.5 1.0-0.8 0.8-0.6 2.5 8.4

意大利Guarniflon(GF)進口軸用格萊圈GCS規格表
訂貨號 d h9*D H9*L+0.2 O型圈尺寸 　 訂貨號 d h9*D H9*L+0.2 O型圈尺寸
GCS 3×2.2 T46N 3*7.9*2.2 4.47*1.78 GCS 120×4.2 T46N 120*130.7*4.2 123.42*3.53
GCS 4×2.2 T46N 4*8.9*2.2 5.6*1.8 GCS 120×6.3 T46N 120*135.1*6.3 126.37*5.33
GCS 5×2.2 T46N 5*9.9*2.2 6.7*1.8 GCS 125×4.2 T46N 125*135.7*4.2 129.77*3.53
GCS 6×2.2 T46N 6*10.9*2.2 7.65*1.78 GCS 125×6.3 T46N 125*140.1*6.3 129.54*5.33
GCS 7×2.2 T46N 7*11.9*2.2 8.75*1.8 GCS 129×4.2 T46N 129*139.7*4.2 132.94*3.53
GCS 8×2.2 T46N 8*12.9*2.2 9.5*1.8 GCS 130×4.2 T46N 130*140.7*4.2 136.12*3.53
GCS 8×3.2 T46N 8*15.3*3.2 10.77*2.62 GCS 130×6.3 T46N 130*145.1*6.3 135.89*5.33
GCS 10×2.2 T46N 10*14.9*2.2 11.8*1.8 GCS 135×4.2 T46N 135*145.7*4.2 139.29*3.53
GCS 10×3.2 T46N 10*17.3*3.2 12.37*2.62 GCS 135×6.3 T46N 135*150.1*6.3 142.24*5.33
GCS 12×2.2 T46N 12*16.9*2.2 14*1.78 GCS 140×4.2 T46N 140*150.7*4.2 145.64*3.53
GCS 12×3.2 T46N 12*19.3*3.2 13.94*2.62 GCS 140×6.3 T46N 140*155.1*6.3 145.42*5.33
GCS 14×2.2 T46N 14*18.9*2.2 15.6*1.78 GCS 145×4.2 T46N 145*155.7*4.2 148.82*3.53
GCS 14×3.2 T46N 14*21.3*3.2 17.12*2.62 GCS 145×6.3 T46N 145*160.1*6.3 151.77*5.33
GCS 15×2.2 T46N 15*19.9*2.2 17.17*1.78 GCS 150×6.3 T46N 150*165.1*6.3 158.12*5.33
GCS 15×3.2 T46N 15*22.3*3.2 17.12*2.62 GCS 160×6.3 T46N 160*175.1*6.3 164.47*5.33
GCS 16×2.2 T46N 16*20.9*2.2 17.17*1.78 GCS 160×8.1 T46N 160*180.5*8.1 170.82*7
GCS 16×3.2 T46N 16*23.3*3.2 18.72*2.62 GCS 165×6.3 T46N 165*180.1*6.3 170.82*5.33
GCS 18×2.2 T46N 18*22.9*2.2 20.35*1.78 GCS 170×4.2 T46N 170*180.7*4.2 177.39*3.53
GCS 18×3.2 T46N 18*25.3*3.2 20.29*2.62 GCS 170×6.3 T46N 170*185.1*6.3 177.17*5.33
GCS 19×4.2 T46N 19*29.7*4.2 23.39*3.53 GCS 175×6.3 T46N 175*190.1*6.3 183.52*5.33
GCS 20×3.2 T46N 20*27.3*3.2 21.89*2.62 GCS 180×4.2 T46N 180*190.7*4.2 183.74*3.53
GCS 20×4.2 T46N 20*30.7*4.2 25*3.53 GCS 180×6.3 T46N 180*195.1*6.3 183.52*5.33
GCS 22×3.2 T46N 22*29.3*3.2 25.07*2.62 GCS 180×8.1 T46N 180*200.5*8.1 189.87*7
GCS 22×4.2 T46N 22*32.7*4.2 26.57*3.53 GCS 190×4.2 T46N 190*200.7*4.2 196.44*3.53
GCS 24×3.2 T46N 24*31.3*3.2 26.64*2.62 GCS 190×6.3 T46N 190*205.1*6.3 196.22*5.33
GCS 25×3.2 T46N 25*32.3*3.2 28.24*2.62 GCS 200×6.3 T46N 200*215.1*6.3 208.92*5.33
GCS 25×4.2 T46N 25*35.7*4.2 29.74*3.53 GCS 200×8.1 T46N 200*220.5*8.1 208.92*7
GCS 26×3.2 T46N 26*33.3*3.2 28.24*2.62 GCS 205×6.3 T46N 205*220.1*6.3 208.92*5.33
GCS 26×4.2 T46N 26*36.7*4.2 29.74*3.53 GCS 210×6.3 T46N 210*225.1*6.3 215.27*5.33
GCS 27×3.2 T46N 27*34.3*3.2 29.82*2.62 GCS 220×6.3 T46N 220*235.1*6.3 227.97*5.33
GCS 28×3.2 T46N 28*35.3*3.2 29.82*2.62 GCS 220×8.1 T46N 220*240.5*8.1 227.97*7
GCS 28×4.2 T46N 28*38.7*4.2 32.92*3.53 GCS 230×6.3 T46N 230*245.1*6.3 234.32*5.33
GCS 29×3.2 T46N 29*36.3*3.2 31.42*2.62 GCS 230×8.1 T46N 230*250.5*8.1 240.67*7
GCS 30×3.2 T46N 30*37.3*3.2 32.99*2.62 GCS 240×6.3 T46N 240*255.1*6.3 247.02*5.33
GCS 30×4.2 T46N 30*40.7*4.2 34.52*3.53 GCS 240×8.1 T46N 240*260.5*8.1 253.37*7
GCS 32×3.2 T46N 32*39.3*3.2 34.59*2.62 GCS 250×8.1 T46N 250*270.5*8.1 266.07*7
GCS 32×4.2 T46N 32*42.7*4.2 36.09*3.53 GCS 260×8.1 T46N 260*284*8.1 266.07*7
GCS 35×3.2 T46N 35*42.3*3.2 37.77*2.62 GCS 270×8.1 T46N 270*290.5*8.1 278.77*7
GCS 35×4.2 T46N 35*45.7*4.2 37.69*3.53 GCS 270×8.1 T46N 270*294*8.1 278.77*7
GCS 36×3.2 T46N 36*43.3*3.2 39.34*2.62 GCS 275×8.1 T46N 275*299*8.1 291.47*7
GCS 36×4.2 T46N 36*46.7*4.2 40.87*3.53 GCS 280×8.1 T46N 280*300.5*8.1 291.47*7
GCS 38×4.2 T46N 38*48.7*4.2 40.87*3.53 GCS 280×8.1 T46N 280*304*8.1 291.47*7
GCS 38×6.3 T46N 38*53.1*6.3 43.82*5.33 GCS 290×8.1 T46N 290*310.5*8.1 304.17*7
GCS 39×4.2 T46N 39*49.7*4.2 44.04*3.53 GCS 290×8.1 T46N 290*314*8.1 304.17*7
GCS 40×4.2 T46N 40*50.7*4.2 44.04*3.53 GCS 300×8.1 T46N 300*324*8.1 316.87*7
GCS 40×6.3 T46N 40*55.1*6.3 43.82*5.33 GCS 310×8.1 T46N 310*330.5*8.1 316.87*7
GCS 42×4.2 T46N 42*52.7*4.2 47.22*3.53 GCS 310×8.1 T46N 310*334*8.1 316.87*7
GCS 42×6.3 T46N 42*57.1*6.3 46.99*5.33 GCS 320×8.1 T46N 320*344*8.1 329.57*7
GCS 44×4.2 T46N 44*54.7*4.2 47.22*3.53 GCS 330×8.1 T46N 330*354*8.1 342.27*7
GCS 45×4.2 T46N 45*55.7*4.2 50.39*3.53 GCS 340×8.1 T46N 340*364*8.1 354.97*7
GCS 45×6.3 T46N 45*60.1*6.3 50.17*5.33 GCS 350×8.1 T46N 350*370.5*8.1 354.97*7
GCS 48×4.2 T46N 48*58.7*4.2 51.5*3.55 GCS 350×8.1 T46N 350*374*8.1 367.67*7
GCS 48×6.3 T46N 48*63.1*6.3 53.34*5.33 GCS 360×8.1 T46N 360*384*8.1 367.67*7
GCS 50×4.2 T46N 50*60.7*4.2 53.57*3.53 GCS 370×8.1 T46N 370*390.5*8.1 380.37*7
GCS 50×6.3 T46N 50*65.1*6.3 56.52*5.33 GCS 370×8.1 T46N 370*394*8.1 380.37*7
GCS 52×4.2 T46N 52*62.7*4.2 56.74*3.53 GCS 380×8.1 T46N 380*404*8.1 393.07*7
GCS 52×6.3 T46N 52*67.1*6.3 56.52*5.33 GCS 390×8.1 T46N 390*414*8.1 405.26*7
GCS 54×6.3 T46N 54*69.1*6.3 59.69*5.33 GCS 400×8.1 T46N 400*420.5*8.1 417.96*7
GCS 55×4.2 T46N 55*65.7*4.2 59.92*3.53 GCS 400×8.1 T46N 400*424*8.1 417.96*7
GCS 55×6.3 T46N 55*70.1*6.3 59.69*5.33 GCS 410×8.1 T46N 410*434*8.1 417.96*7
GCS 56×4.2 T46N 56*66.7*4.2 59.92*3.53 GCS 420×8.1 T46N 420*444*8.1 430.66*7
GCS 56×6.3 T46N 56*71.1*6.3 62.87*5.33 GCS 430×8.1 T46N 430*454*8.1 443.36*7
GCS 58×6.3 T46N 58*73.1*6.3 62.87*5.33 GCS 440×8.1 T46N 440*464*8.1 456.06*7
GCS 60×4.2 T46N 60*70.7*4.2 63.09*3.53 GCS 450×8.1 T46N 450*474*8.1 468.76*7
GCS 60×6.3 T46N 60*75.1*6.3 66.04*5.33 GCS 460×8.1 T46N 460*484*8.1 468.76*7
GCS 63×4.2 T46N 63*73.7*4.2 66.27*3.53 GCS 470×8.1 T46N 470*494*8.1 481.46*7
GCS 63×6.3 T46N 63*78.1*6.3 69.22*5.33 GCS 480×8.1 T46N 480*504*8.1 494.16*7
GCS 65×6.3 T46N 65*80.1*6.3 69.22*5.33 GCS 490×8.1 T46N 490*514*8.1 506.86*7
GCS 67×4.2 T46N 67*77.7*4.2 72.62*3.53 GCS 500×8.1 T46N 500*524*8.1 506.86*7
GCS 70×4.2 T46N 70*80.7*4.2 75.79*3.53 GCS 510×8.1 T46N 510*534*8.1 532.26*7
GCS 70×6.3 T46N 70*85.1*6.3 75.57*5.33 GCS 520×8.1 T46N 520*544*8.1 532.26*7
GCS 72×4.2 T46N 72*82.7*4.2 75.79*3.53 GCS 530×8.1 T46N 530*554*8.1 557.66*7
GCS 75×4.2 T46N 75*85.7*4.2 78.97*3.53 GCS 540×8.1 T46N 540*564*8.1 557.66*7
GCS 75×6.3 T46N 75*90.1*6.3 81.92*5.33 GCS 550×8.1 T46N 550*574*8.1 557.66*7
GCS 80×4.2 T46N 80*90.7*4.2 85.32*3.53 GCS 560×8.1 T46N 560*584*8.1 582.68*7
GCS 80×6.3 T46N 80*95.1*6.3 85.09*5.33 GCS 570×8.1 T46N 570*594*8.1 582.68*7
GCS 83×4.2 T46N 83*93.7*4.2 88.49*3.53 GCS 580×8.1 T46N 580*604*8.1 608.08*7
GCS 85×6.3 T46N 85*100.1*6.3 91.44*5.33 GCS 590×8.1 T46N 590*614*8.1 608.08*7
GCS 86×4.2 T46N 86*96.7*4.2 91.67*3.53 GCS 600×8.1 T46N 600*624*8.1 608.08*7
GCS 90×4.2 T46N 90*100.7*4.2 94.84*3.53 GCS 610×8.1 T46N 610*634*8.1 633.48*7
GCS 90×6.3 T46N 90*105.1*6.3 94.62*5.33 GCS 620×8.1 T46N 620*644*8.1 633.48*7
GCS 92×4.2 T46N 92*102.7*4.2 98.02*3.53 GCS 630×8.1 T46N 630*654*8.1 658.88*7
GCS 95×4.2 T46N 95*105.7*4.2 101.19*3.53 GCS 640×8.1 T46N 640*664*8.1 658.88*7
GCS 95×6.3 T46N 95*110.1*6.3 100.97*5.33 GCS 650×9.5 T46N 650*677.3*9.5 663*8.4
GCS 100×4.2 T46N 100*110.7*4.2 104.37*3.53 GCS 660×9.5 T46N 660*687.3*9.5 673*8.4
GCS 100×6.3 T46N 100*115.1*6.3 107.32*5.33 GCS 670×9.5 T46N 670*697.3*9.5 683*8.4
GCS 105×4.2 T46N 105*115.7*4.2 110.72*3.53 GCS 680×9.5 T46N 680*707.3*9.5 693*8.4
GCS 105×6.3 T46N 105*120.1*6.3 110.49*5.33 GCS 688×9.5 T46N 688*715.3*9.5 701*8.4
GCS 110×4.2 T46N 110*120.7*4.2 113.89*3.53 GCS 690×9.5 T46N 690*717.3*9.5 703*8.4
GCS 110×6.3 T46N 110*125.1*6.3 116.84*5.33 GCS 700×8.1 T46N 700*724*8.1 712*7
GCS 110×8.1 T46N 110*130.5*8.1 120.02*7 GCS 710×9.5 T46N 710*737.3*9.5 723*8.4
GCS 112×6.3 T46N 112*127.1*6.3 116.84*5.33 GCS 740×9.5 T46N 740*767.3*9.5 753*8.4
GCS 115×4.2 T46N 115*125.7*4.2 120.24*3.53 GCS 760×8.1 T46N 760*784*8.1 772*7
GCS 115×6.3 T46N 115*130.1*6.3 120.02*5.33 GCS 770×9.5 T46N 770*797.3*9.5 783*8.4
GCS 118×6.3 T46N 118*133.1*6.3 123.19*5.33 GCS 800×9.5 T46N 800*827.3*9.5 813*8.4
