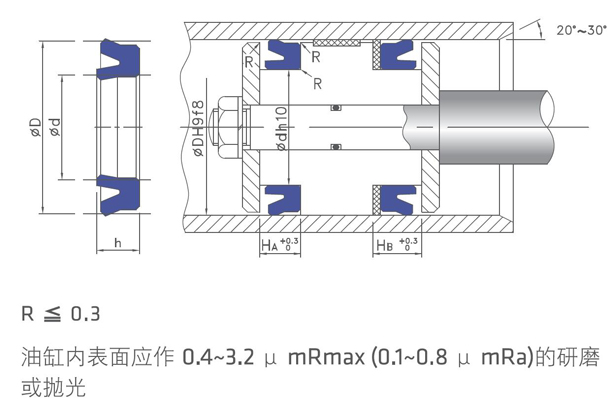

臺灣DING ZING DZ鼎基提供2款活塞專用密封圈：D-1和D-8。這些密封件僅適用于活塞，尺寸可選擇以英寸為單位。材質(zhì): TPU, (D-8): TPU；比重 (ASTM D792): 1.20；硬度 (ASTM D2240): 93；拉力強度 (ASTM D412): 317；工作速度: 0.03 ~ 0.5 m/sec；工作溫度: -20oC ~ 100oC
| 品名 | ? D*? d*h | HA | 品名 | ? D*? d*h | HA | 品名 | ? D*? d*h | HA | ||
| D-1 | 15*5*8 | 9 | D-1 | 63*50*14 | 15 | D-1 | 120*106*8.5 | 9.5 | ||
| D-1 | 15*6*8 | 9 | D-1 | 65*50*9 | 10 | D-1 | 120*108*14 | 15 | ||
| D-1 | 14*8*4 | 5 | D-1 | 70*50*9 | 10 | D-1 | 125*109*18 | 19 | ||
| D-1 | 16*10*4.5 | 5.5 | D-1 | 70*50*12 | 13 | D-1 | 120*110*6 | 7 | ||
| D-1 | 19.2*11.2*5 | 6 | D-1 | 63*53*6 | 7 | D-1 | 125*110*9 | 10 | ||
| D-1 | 22*14*5 | 6 | D-1 | 63*53*6.5 | 7.5 | D-1 | 125*110*10 | 11 | ||
| D-1 | 25*17*4 | 5 | D-1 | 65*53*14 | 15 | D-1 | 130*110*12 | 13 | ||
| D-1 | 25*17*10 | 11 | D-1 | 70*55*9 | 10 | D-1 | 125*112*9 | 10 | ||
| D-1 | 34*19*8 | 9 | D-1 | 70*55*10 | 11 | D-1 | 130*115*9 | 10 | ||
| D-1 | 30*20*5 | 6 | D-1 | 70*55*12 | 13 | D-1 | 133*118*9 | 10 | ||
| D-1 | 31*23*5 | 6 | D-1 | 75*55*12 | 13 | D-1 | 130*120*13.5 | 14.5 | ||
| D-1 | 32*25*5.8 | 6.5 | D-1 | 72*58*12 | 13 | D-1 | 140*120*13 | 14 | ||
| D-1 | 40*25*12 | 13 | D-1 | 70*60*6 | 7 | D-1 | 140*124*18 | 19 | ||
| D-1 | 32*26*5 | 6 | D-1 | 70*60*8 | 9 | D-1 | 140*125*9 | 10 | ||
| D-1 | 35*27*5 | 6 | D-1 | 70*60*12 | 13 | D-1 | 140*128*14 | 15 | ||
| D-1 | 37*29*5.5 | 6.5 | D-1 | 75*60*13 | 14 | D-1 | 150*130*15 | 16 | ||
| D-1 | 40*30*6 | 7 | D-1 | 71*61*6 | 7 | D-1 | 150*135*9 | 10 | ||
| D-1 | 40*30*6.5 | 7.5 | D-1 | 80*64*12 | 13 | D-1 | 160*135*19 | 20 | ||
| D-1 | 40*30*8 | 9 | D-1 | 75*65*6 | 7 | D-1 | 150*140*7 | 8 | ||
| D-1 | 45*30*6 | 7 | D-1 | 80*65*10 | 11 | D-1 | 160*140*13 | 14 | ||
| D-1 | 45*30*12 | 13 | D-1 | 80*70*6 | 7 | D-1 | 160*145*9 | 10 | ||
| D-1 | 45*33*9 | 10 | D-1 | 80*70*8 | 9 | D-1 | 160*148*15.5 | 16.5 | ||
| D-1 | 45*35*6 | 7 | D-1 | 86*70*12 | 13 | D-1 | 160*150*12.5 | 13.5 | ||
| D-1 | 45*35*8 | 9 | D-1 | 80*71*6.5 | 7.5 | D-1 | 170*150*15 | 16 | ||
| D-1 | 48*35*10 | 11 | D-1 | 85*73*14 | 15 | D-1 | 170*154*18 | 19 | ||
| D-1 | 50*35*9 | 10 | D-1 | 88*75*9.5 | 10.5 | D-1 | 170*155*9 | 10 | ||
| D-1 | 50*35*12 | 13 | D-1 | 90*75*9 | 10 | D-1 | 180*165*9 | 10 | ||
| D-1 | 55*35*12 | 13 | D-1 | 90*75*10 | 11 | D-1 | 190*174*18 | 19 | ||
| D-1 | 46*36*7 | 8 | D-1 | 100*75*18 | 19 | D-1 | 190*175*9 | 10 | ||
| D-1 | 45*37*6 | 7 | D-1 | 90*78*14 | 15 | D-1 | 200*175*18.2 | 19.2 | ||
| D-1 | 50*40*6 | 7 | D-1 | 90*80*6 | 7 | D-1 | 210*190*12 | 13 | ||
| D-1 | 50*40*6.5 | 7.5 | D-1 | 95*80*9 | 10 | D-1 | 220*195*16 | 17 | ||
| D-1 | 50*40*8 | 9 | D-1 | 100*80*14.5 | 15.5 | D-1 | 220*200*12 | 13 | ||
| D-1 | 50*40*9 | 10 | D-1 | 95*83*14 | 15 | D-1 | 220*204*18 | 19 | ||
| D-1 | 50.8*40.8*7 | 8 | D-1 | 100*85*9 | 10 | D-1 | 240*215*16 | 17 | ||
| D-1 | 55*45*6 | 7 | D-1 | 100*85*9.5 | 10.5 | D-1 | 240*220*12 | 13 | ||
| D-1 | 56*45*7 | 8 | D-1 | 105*89*18 | 19 | D-1 | 250*225*19 | 20 | ||
| D-1 | 60*45*10 | 11 | D-1 | 105*90*9 | 10 | D-1 | 250*230*12 | 13 | ||
| D-1 | 65*45*12 | 13 | D-1 | 110*94*18 | 19 | D-1 | 250*230*12.5 | 13.5 | ||
| D-1 | 56*46*6 | 7 | D-1 | 110*95*9 | 10 | D-1 | 255*230*22 | 23 | ||
| D-1 | 63*48*9 | 10 | D-1 | 110*98*14 | 15 | D-1 | 250*234*18 | 19 | ||
| D-1 | 63*48*10 | 11 | D-1 | 115*100*9 | 10 | D-1 | 300*270*19 | 20 | ||
| D-1 | 63*48*11.5 | 12.5 | D-1 | 120*100*12 | 13 | D-1 | 300*270*24 | 25 | ||
| D-1 | 60*50*5 | 6 | D-1 | 120*100*13 | 14 | D-1 | 300*284*18 | 19 | ||
| D-1 | 60*50*6 | 7 | D-1 | 130*100*12 | 13 | D-1 | 320*290*19 | 20 | ||
| D-1 | 60*50*7 | 8 | D-1 | 120*105*9 | 10 | D-1 | 330*300*19 | 20 | ||
| D-1 | 60*50*8 | 9 | D-1 | 120*104*18 | 19 | D-1 | 400*370*22 | 23 |
