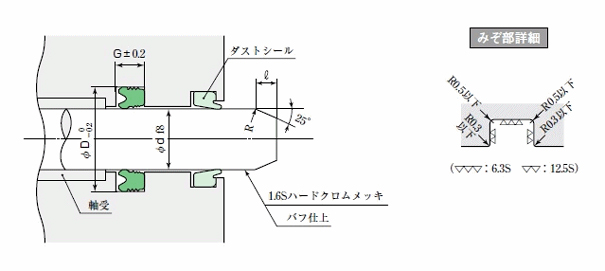

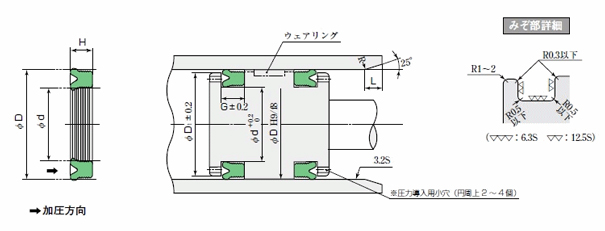

日本SAKAGAMI阪上氣封GLY是用于氣缸的活塞及活塞桿密封圈。不能用于潤滑油缸，因?yàn)樗鼘?zhuān)門用于非潤滑。
| 標準型號 | 密封件的公稱尺寸及安裝尺寸 (単位：mm） | 耐熱性 | ||||
| （RK701） | d*D*H | G | D1 | L | e | （RF905） |
| GLY-0010001K701 | 10*18*5 | 5.7 | 17.1 | 3 | 1.5 | |
| GLY-0012001K701 | 12*20*5 | 5.7 | 19.1 | 3 | 1.5 | |
| GLY-0014001K701 | 14*22*5 | 5.7 | 21.1 | 3 | 1.5 | |
| GLY-16 | 16*24*5 | 5.7 | 23.1 | 3 | 1.5 | |
| GLY-0017001K701 | 17*25*5 | 5.7 | 24.1 | 3 | 1.5 | |
| GLY-18 | 18*26*5 | 5.7 | 25.1 | 3 | 1.5 | |
| GLY-20 | 20*28*5 | 5.7 | 27.1 | 3 | 1.5 | GLY-20F |
| GLY-22.4 | 22.4*30*5 | 5.7 | 29.1 | 3 | 1.5 | GLY-22.4F |
| GLY-25 | 25*33*5 | 5.7 | 32.1 | 3 | 1.5 | GLY-25F |
| GLY-0027001K701 | 27*35*5 | 5.7 | 34.1 | 3 | 1.5 | |
| GLY-28 | 28*36*5 | 5.7 | 35.1 | 3 | 1.5 | |
| GLY-30 | 30*40*6 | 7 | 39 | 3 | 3 | GLY-30F |
| GLY-31.5 | 31.5*41.5*6 | 7 | 40.5 | 3 | 3 | |
| GLY-32 | 32*42*6 | 7 | 41 | 3 | 3 | |
| GLY-35 | 35*45*6 | 7 | 44 | 3 | 3 | |
| GLY-35.5 | 35.5*45.5*6 | 7 | 44.5 | 3 | 3 | |
| GLY-36 | 36*46*6 | 7 | 45 | 3 | 3 | GLY-36F |
| GLY-40 | 40*50*6 | 7 | 49 | 3 | 3 | GLY-40F |
| GLY-45 | 45*55*6 | 7 | 54 | 3 | 3 | GLY-45F |
| GLY-50 | 50*60*6 | 7 | 59 | 3 | 3 | GLY-50F |
| GLY-53 | 53*63*6 | 7 | 62 | 3 | 3 | GLY-53F |
| GLY-0055001K701 | 55*65*6 | 7 | 64 | 3 | 3 | |
| GLY-60 | 60*70*6 | 7 | 69 | 3 | 3 | GLY-60F |
| GLY-63 | 63*73*6 | 7 | 72 | 3 | 3 | |
| GLY-65 | 65*75*6 | 7 | 74 | 3 | 3 | |
| GLY-70 | 70*80*6 | 7 | 79 | 3 | 3 | GLY-70F |
| GLY-75 | 75*85*6 | 7 | 84 | 3 | 3 | |
| GLY-80 | 80*90*6 | 7 | 89 | 3 | 3 | |
| GLY-85 | 85*100*9 | 10 | 98.5 | 4 | 4 | |
| GLY-0095001K701 | 95*110*9 | 10 | 108.5 | 4 | 4 | |
| GLY-0100002K701 | 100*115*9 | 10 | 113.5 | 4 | 4 | GLY-0100001F905 |
| GLY-105 | 105*120*9 | 10 | 118.5 | 4 | 4 | |
| GLY-110 | 110*125*9 | 10 | 123.5 | 4 | 4 | GLY-110F |
| GLY-0115001K701 | 115*130*9 | 10 | 128.5 | 4 | 4 | |
| GLY-125 | 125*140*9 | 10 | 138.5 | 4 | 4 | |
| GLY-135 | 135*150*9 | 10 | 148.5 | 4 | 4 | |
| GLY-145 | 145*160*9 | 10 | 158.5 | 4 | 4 | GLY-145F |
| GLY-0160001K701 | 160*175*9 | 10 | 173.5 | 4 | 4 | |
| GLY-165 | 165*180*9 | 10 | 178.5 | 4 | 4 | |
| GLY-0175001K701 | 175*190*9 | 10 | 188.5 | 4 | 4 | |
| GLY-180 | 180*200*12 | 13 | 198 | 5 | 5 | GLY-180F |
| GLY-0185001K701 | 185*205*12 | 13 | 203 | 5 | 5 | |
| GLY-0200001K701 | 200*220*12 | 13 | 218 | 5 | 5 | |
| GLY-215 | 215*235*12 | 13 | 233 | 5 | 5 | |
| GLY-230 | 230*250*12 | 13 | 248 | 5 | 5 | GLY-230F |
| GLY-0240001K701 | 240*260*12 | 13 | 258 | 5 | 5 | |
